| Contact Form | 1 Normally Open | 2 Normally Open | 1 Change Over | 1Change Over | 1 Change Over |
| Type | 3570 1210...2) | 3572 1220 ...1) | 3563 1231 ...2) | 3573 1231 ...2) | 3565 1231 ...2) |
Features |
Industry-standard housing | Industry-standard housing | Industry-standard housing | Industry-standard housing | Industry-standard housing High switch. power High switch. current |
| Coil Parameters | |||||||||||||||
| Nominal coil voltage VDC | 5 | 12 | 24 | 5 | 12 | 24 | 5 | 12 | 24 | 5 | 12 | 24 | 5 | 12 | 24 |
| Pull-in voltage max. VDC | 3,8 | 9 | 18 | 3,8 | 9 | 18 | 3,8 | 9 | 18 | 3,5 | 8 | 16 | 3,5 | 8 | 16 |
| Drop-out voltage min. VDC | 0,8 | 1 | 2 | 0,8 | 1 | 2 | 1 | 2 | 4 | 1 | 2 | 4 | 1 | 2 | 4 |
| Operating voltage max. VDC | 20 | 30 | 40 | 10 | 20 | 40 | 10 | 18 | 35 | 10 | 18 | 35 | 10 | 18 | 35 |
| Coil resistance ±10% Ohm | 500 | 1000 | 2150 | 140 | 500 | 2150 | 200 | 500 | 2150 | 200 | 500 | 2150 | 200 | 500 | 2150 |
| Contact Parameters | |||||
| Switching capacity max. W/ VA | 10 | 10 | 3 | 5 | 20 |
| Switching voltage max. V | 100 AC / DC | 100 AC / DC | 70 AC / 100 DC | 100 AC / DC | 100 AC / DC |
| Switching current max. A | 0,5 | 0,5 | 0,25 | 0,5 | 1,0 |
| Carrying current max. A | 1,0 | 1,0 | 0,5 | 1,0 | 2,0 |
| Contact resistance max. mOhm | 150 | 150 | 200 | 150 | 150 |
| DieIelectric strength min. VDC | 200 | 200 | 140 | 200 | 200 |
| Relay Parameters | |||||
| Dielectric strength coil/contact VDC | 1000 | 1000 | 1000 | 500 | 500 |
| Insulation resistance coil/contact Ohm | 1E10 | 1E10 | 1E10 | 1E10 | 1E10 |
| Storage temperature °C | -40...+105 | -40...+105 | -40...+105 | -40...+105 | -40...+105 |
| Operating temperature °C | -35...+80 | -35...+80 | -35...+80 | -35...+80 | -35...+80 |
| Pull-in time incl. bounce time max. ms | 0,5 | 0,5 | 2,0 | 1,2 | 1,2 |
| Drop-out time with diode ms | 0,5 | 0,5 | 3,0 | 0,8 | 0,8 |
| Weight approx. g | 2,3 | 2,3 | 2,3 | 23 | 2,3 |
1) Also available with diode 2) Also available with diode or with electrostatic shielding and diode
General ParametersThe life expectancy of a Reed Relay is at least 105...106 operations at nominal load.
At minimum load the life expectancy can be up to 5 x 108 operations.
The mechanical life expectancy is 109 operations (minimum).
Through the switching of higher loads, especially inductive or capacitive and lamp loads.
Life expectancy can be considerably reduced due to exceeding the permissible maximum current.

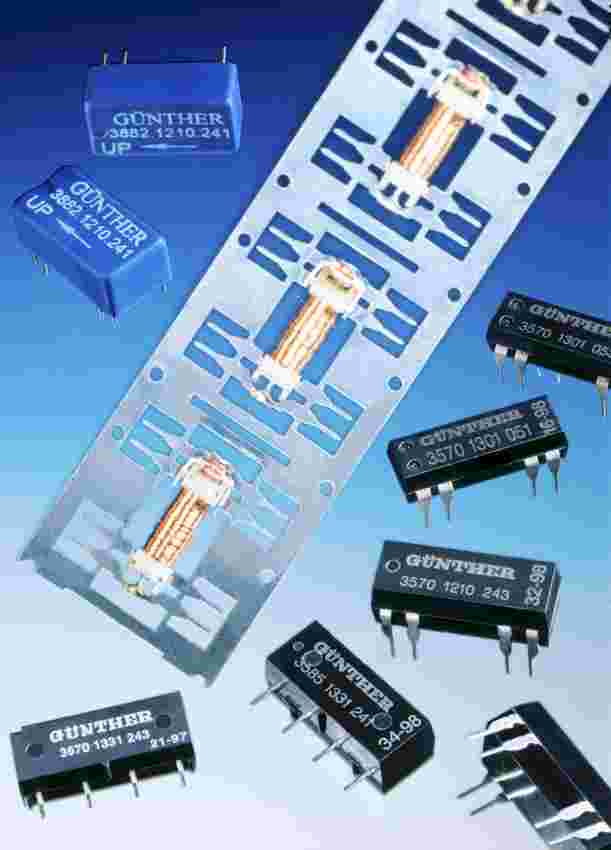

DIL-SIL-REED RELAYS
Version |
DIL-High Profile | DIL-Low Profile | SIL |
Surface Mount | |
Contact Form |
1 Normally Open | 1 Normally Open | 1 Normally Open | 1 Normally Open | 1 Normally Open |
Type |
3585 1210...1) | 3570 1301 ...2) | 3570 1331 ...1) | 3585 1331 ...1) | 3570 1511 ...1) |
Features |
- Wetted - No bounce - Non position sensitive |
- Industry -standard |
- Industry -standard |
- Wetted - No bounce - Non position sensitive |
- High dielectric strength |
| Coil Parameters | |||||||||||||||
| Nominal coil voltage VDC | 5 | 12 | 24 | 5 | 12 | 24 | 5 | 12 | 24 | 5 | 12 | 24 | 5 | 12 | 24 |
| Pull-in voltage max. VDC | 3,8 | 9 | 18 | 3,8 | 9 | 18 | 3,8 | 9 | 18 | 3,8 | 9 | 18 | 3,8 | 9 | 18 |
| Drop-out voltage min. VDC | 0,5 | 1 | 2 | 0,8 | 1 | 2 | 0,8 | 1,5 | 2 | 0,5 | 1 | 2 | 0,8 | 1 | 2 |
| Operating voltage max. VDC | 10 | 20 | 40 | 15 | 20 | 30 | 15 | 30 | 40 | 10 | 20 | 40 | 20 | 30 | 40 |
| Coil resistance ±10% Ohm | 140 | 500 | 2.150 | 500 | 1.000 | 2.000 | 500 | 1.000 | 2.000 | 140 | 500 | 2.000 | 500 | 1.000 | 2.150 |
| Contact Parameters | |||||
| Switching capacity max. W/VA | 30 | 10 | 10 | 30 | 10 |
| Switching voltage max. V | 350 AC/DC | 100 AC/DC | 100 AC/DC | 350 AC/DC | 100 AC/DC |
| Switching current max. A | 0,75 | 0,5 | 0,5 | 0,75 | 0,5 |
| Carrying current max. A | 2,0 | 1,0 | 1,0 | 2,0 | 1,0 |
| Contact resistance max. mOhm | 100 | 150 | 150 | 100 | 200 |
| Dielectric strength min. VDC | 1.000 | 200 | 200 | 1.000 | 200 |
| Relay Parameters | |||||
| Dielectric strength coil/contact VDC | 1.000 | 1.000 | 1.000 | 1.000 | 4.000 |
| Insulation resistance coil/contact Ohm | 10E10 | 10E10 | 10E10 | 10E10 | 10E10 |
| Storage temperature °C | 35...+105 | -40...+105 | 40...+105 | -35...+105 | 40...+105 |
| Operating temperature °C | -20...+75 | -35...+80 | -35...+80 | -20...+75 | -35...+80 |
| Pull-in time incl. bounce time max. ms | 1,8 | 0,5 | 0,5 | 1,8 | 1,0 |
| Drop-out time with diode ms | 1,5 | 0,5 | 0,5 | 1,5 | 1,0 |
| Dimensions page | 23 | 23 | 23 | 23 | 23 |
| Weight approx. g | 2,5 | 1,8 | 1,6 | 1,8 | 1,6 |
| Pin configuration (top view) | - | - | - | - | - |
Vibration and Shock Resistance
During the evaluation of vibration and shock resistance, the relays are driven with nominal voltage.
The switches should not open longer than 10µ sec.
| - | Normally Open | Change Over | Wetted |
| Vibration resist. | 20 g/5...2000 Hz | 10g/5...500Hz | 10g/10...500Hz |
| Shock resistance |
100 g/11 ms Sine half wave |
50 g/11 ms Sine half wave |
30 g/11 ms Sine half wave |
Washability
Resistant to caltron, alcohol and distilled (pure) water.
During the final rinsing phase only the purest substances should be used.
Capacitance
The capacitance parameters are regarded as typical and are calculated for versions without shielding:
| Capacitance, measured... | N.O. | N.O wetted | Change over |
| across open contact | 0,8 pF | 1,8pF | 2,5pF |
| between open contact and coil | 1,5pF | 3,6 pF | 2,5 pF |
| between closed contact and coil | 3,0 pF | 7,0 pF | 2,5pF |
By using laser welding in manufacture, a number of our DIL-SIL-Reed Relays are suitable for enhanced soldering requirements.
All relays meet the DIN 8505 requirements.
Hole Diameter in PCB: 0,65 mm
